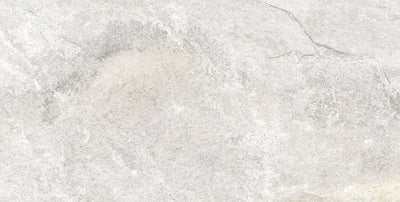

White 12x24
Topography
Topography is an Italian porcelain series that replicates the look of natural stone. This textured collection is offered in two field tile sizes, as well as three different mosaics patterns. Each size is available in 4 different colors.

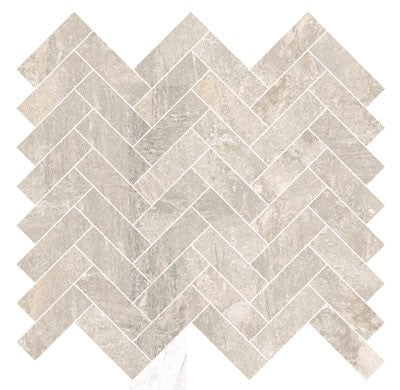

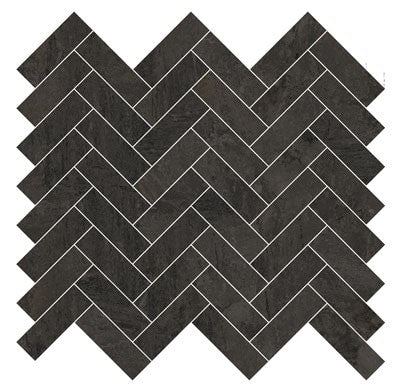

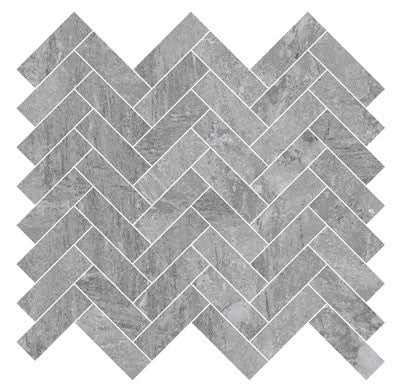

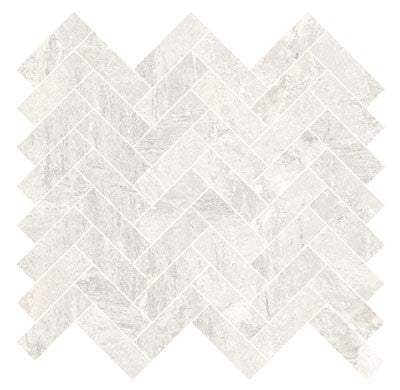

1x3 Herringbone Mosaic

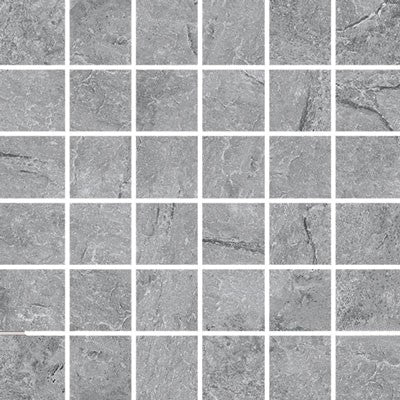

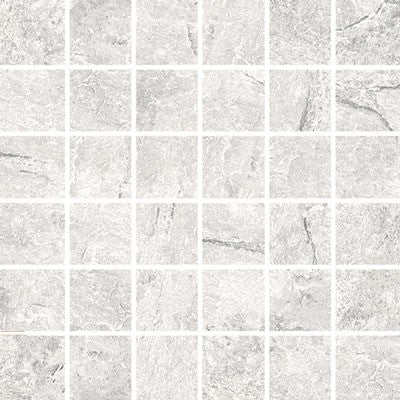

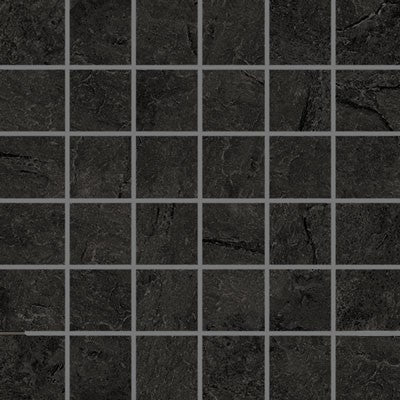

2x2 Mosaic

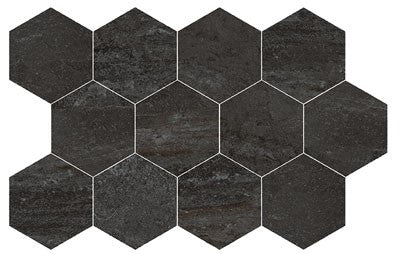

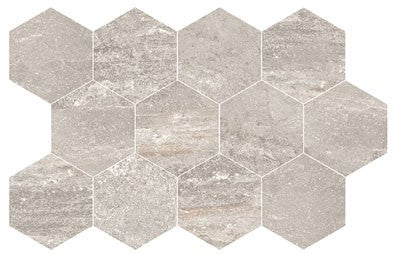

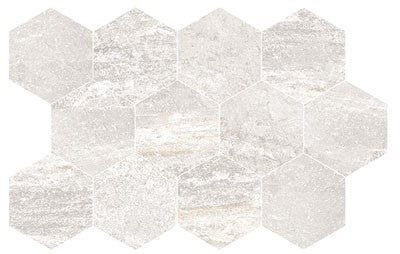

4x4.5 Hexagon Mosaic
4x12
PRODUCT SPECIFICATIONS
| Sizes Available: | 4x24, 12x24, 4x12 black, 2x2 mosaic on 12x12 sheet, herringbone mosaic on 13x13 sheet, hexagon mosaic on 11x14 sheet, 3x24 bullnose |
|---|---|
| Special Order / Lead Time Required: | 4x12 |
| Material: | Porcelain |
| Thickness: | 9 mm |
| Wear Rating: | White: 5 - Walls + Residential / Commercial Floor Applications; All other colors: 4 - Walls + Residential / Most Commercial Floor Applications |
| Shade Variation: | V3 |
| Frost Proof: | Yes |
| DCOF: | ≥ 0.42 |
| Country Origin: | Italy |
| Min. Grout Joint: | 1/8" |
| Additional Info: | Per ANSI standard A108.02, 4.3.8.2; tiles longer than 15" should not be staggered more than 1/3 the length of the tile |
PERFORMANCE DATA
| Water Absorption | ISO 10545-3 | ≤ 0.5% |
|---|---|---|
| Abrasion Resistance | ISO 10545-7 | 4 / 5 |
| Breaking Strength | ISO 10545-4 | ≥ 35 N/mm² |
| DCOF (AcuTest) | AcuTest | ≥ 0.42 |
| Dimensions Range | ISO 10545-2 | Conforms |
| Frost Resistance | ISO 10545-12 | Frost Proof |
| Chemical Resistance - Household Chemicals | ISO 10545-13 | GA |
| Chemical Resistance - Low Concentration Acids | ISO 10545-13 | GLA |
| Thermal Shock Resistance | ISO 10545-9 | Resistant |
| Resistance to Stains | ISO 10545-14 | Class 5 |
| Crazing Resistance (Glazed Tiles) | ISO 10545-11 | Resistant |
