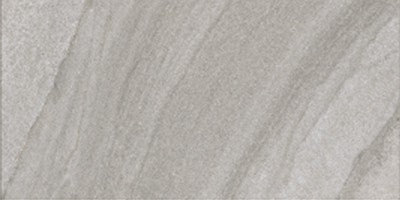

Canyon 12x24
Canyon Variation
Canyon 12x24
Canyon 12x24
Canyon 12x24

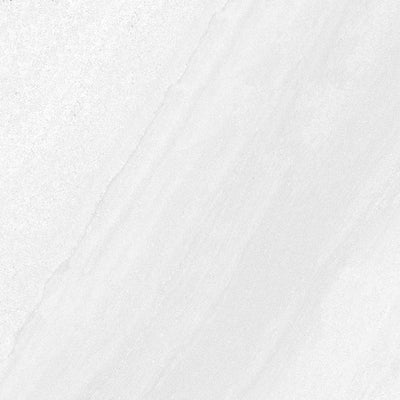

Artic Variation

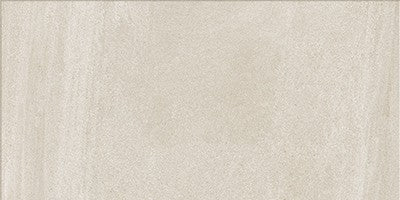

Artic
Artic
Boulder Variation
Link Variation
Link 12x24 and 24x24
Link 12x24 and 24x24
Link 12x24 and 24x24
Link 12x24 and 24x24
Link

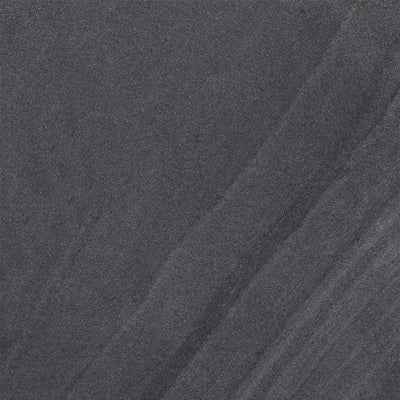

Boulder 24x24
Boulder 24x24
Boulder 24x24
Boulder 24x24
Origin
Origin is a frost proof porcelain tile series from Tile America has the look of natural stone with multi-directional veining and is produced in the USA, yet is Italian designed. This series is suitable for all commercial and residential applications.

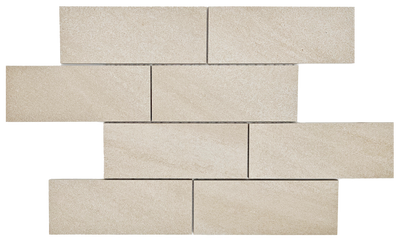

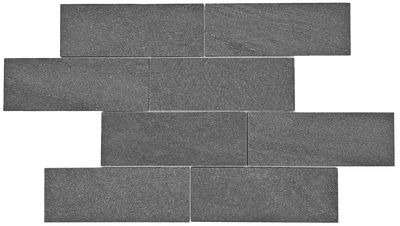

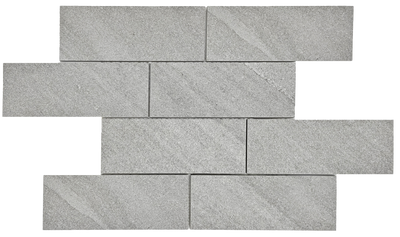

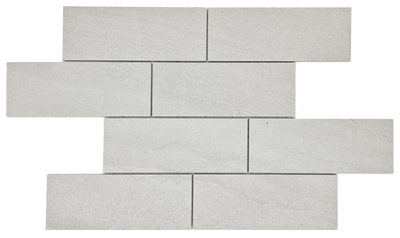

3x8 Brick Mosaic

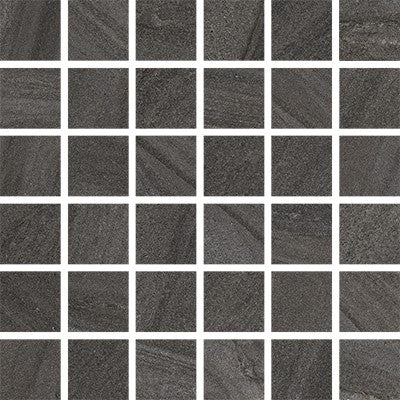

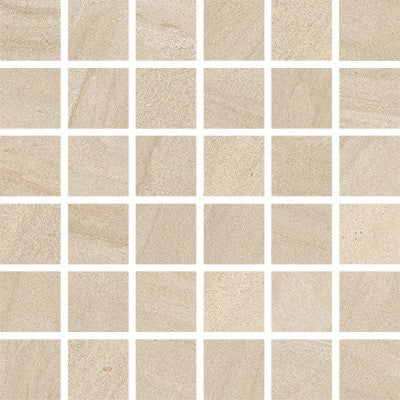

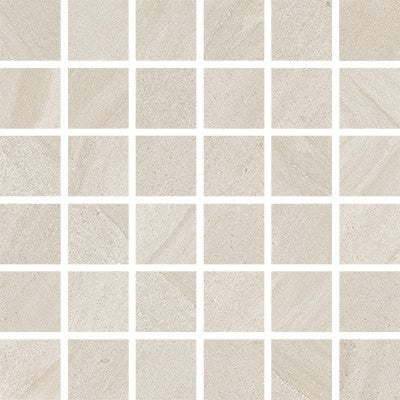

2x2 Mosaics
3x24 Bullnose
PRODUCT SPECIFICATIONS
| Sizes Available: | 12x24, 2x2 mosaic on 12x12 sheet, 3x24 bullnose |
|---|---|
| Material: | Porcelain |
| Thickness: | 9 mm |
| Wear Rating: | 5 – Walls + Residential / Commercial Floor Applications |
| Shade Variation: | V2 |
| Frost Proof: | Yes |
| Dynamic Coefficient of Friction: | ≥ 0.42 |
| Country of Origin: | Made in America |
| Additional Information: | Per ANSI standard A108.02, 4.3.8.2; tiles longer than 15" should not be staggered more than 1/3 the length of the tile. |
PERFORMANCE DATA
| Water Absorption | ASTM C373 | ≤ 0.5% |
|---|---|---|
| Breaking Strength | ASTM C648 | ≥ 400 lbf |
| Thickness Dimension | ASTM C499 | In accordance |
| Facial Dimension | ASTM C499 | In accordance |
| Warpage Diagonal | ASTM C485 | In accordance |
| Wedging | ASTM C502 | In accordance |
| Frost Resistance | ASTM C1026 | Frost Proof |
| Chemical Resistance | ASTM C650 | Unaffected |
| Scratch Hardness | MOHS | 6 |
| Dynamic Coefficient of Friction | AcuTest | ≥ 0.42 |
