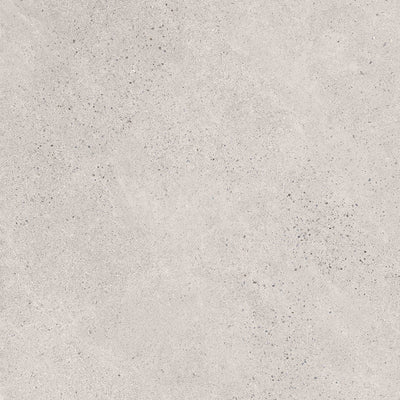

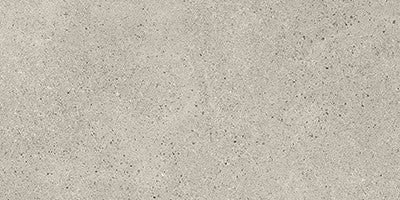

Bolt 12x24

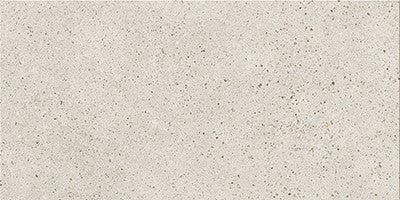

Tie 12x24
Link
The Link series is an American-made frost proof porcelain that merges the beauty of a natural stone and concrete. The gentle movement of fine grains and a uniform tonality makes Link a versatile collection for any setting.
PRODUCT SPECIFICATIONS

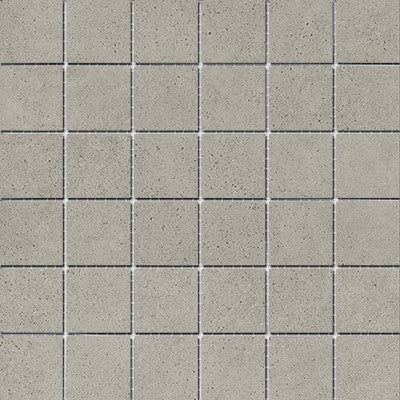

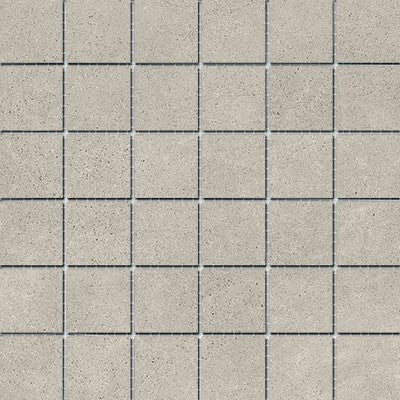

| Sizes Available: | 12x24, 2x2 mosaic on 12x12 sheet, 3x24 bullnose |
|---|---|

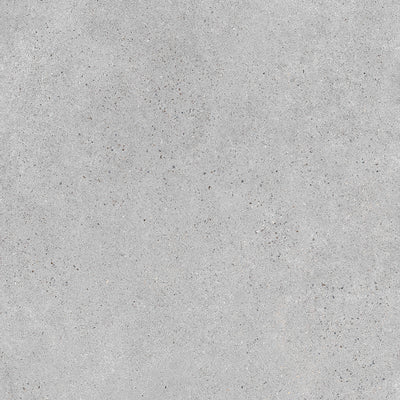

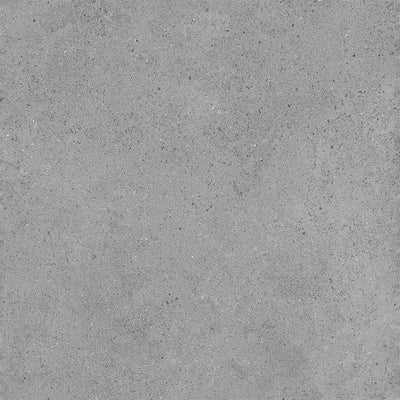

| Special Order / Lead Time Required: | 6x24, 24x24, 24x48, 12x12, 6x12 cove base |
| Material: | Porcelain |
| Wear Rating: | 5 – Walls + Residential / Commercial Floor Applications |
| Shade Variation: | V2 |
| Frost Proof: | Yes |
| Dynamic Coefficient of Friction: | ≥ 0.42 |
| Country of Origin: | Made in America |
| Minimum Grout Joint: | 1/8" |
| Additional Information: | Per ANSI standard A108.02, 4.3.8.2; tiles longer than 15" should not be staggered more than 1/3 the length of the tile. |
PERFORMANCE DATA
| Water Absorption | ASTM C373 | ≤ 0.5% |
|---|---|---|
| Abrasion Resistance | ASTM C1027 | 1 |
| Breaking Strength | ASTM C648 | ≥ 0.50 kN |
| Bond Strength | ASTM C482 | ≥ 50 psi |
| Dynamic Coefficient of Friction | AcuTest | ≥ 0.42 |
| Thickness Dimension | ASTM C499 | In accordance |
| Facial Dimension | ASTM C499 | In accordance |
| Warpage Diagonal | ASTM C485 | In accordance |
| Wedging | ASTM C502 | In accordance |
| Frost Resistance | ASTM C1026 | Frost Proof |
| Chemical Resistance | ASTM C650 | GA / GLA |
| Scratch Hardness | MOHS | 6 |
